Section planes let you cut through a model to view internal details or specific cross-sections of a project. This helps you better understand complex spatial relationships and inspect areas that are otherwise hidden from view.

Things to Consider

  • Required User Permissions

  • Additional Information:

    • Maximum Limit: You can add a maximum of six (6) planes per session. If you exceed this limit, a notification message informs you. In the future, section boxes will be available and should be used instead.

Prerequisites

Steps

  1. Navigate to the Model Manager (Beta) tool.

  2. Open a project model.

  3. Choose from these options to place the section plane:

    • To place at your cursor location, right-click any object in the 3D space and choose Add Section Plane from the context menu.

    • To use the right toolbar and choose a location, click Section Tools This image shows the Section Tools icon in the right toolbar of the viewer in the Model Manager tool. . Next, move your cursor over a model object. A dynamic preview appears on the surface. Click to place the plane.

  4. Once placed, click and drag the arrow-shaped drag handles to move the plane into position.

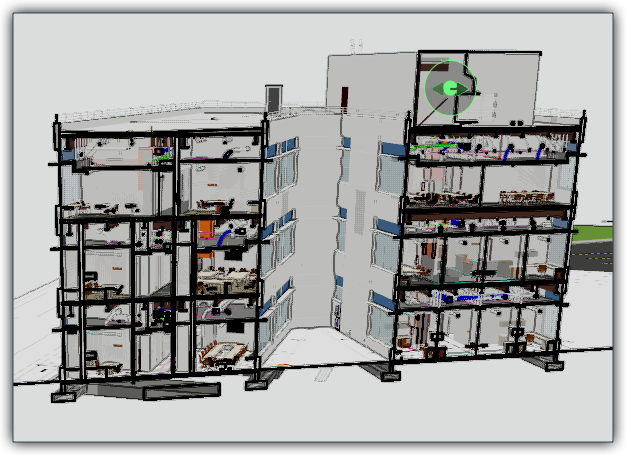

    Shows the drag handles that appear after placing a section plane in the Model Manager.

    Info

    Note the following when positioning the plane:

    • The profile cut's outline thins while moving through sliced objects to reveal the cross-section.

    • The drag handles remain visible and do not occlude the geometry.

    • When dragging stops, the profile cut's outline thickens.

    • If you move your cursor away from the drag handle, click it to recenter the camera back to your cut.

  5. (Optional) Manage the handle further by click More (⋮) and choosing an option from the context menu.

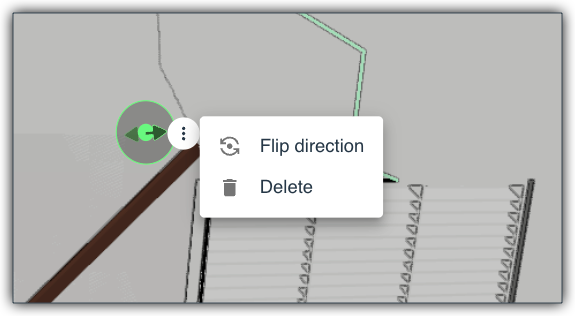

    Shows the More context menu when positioning a section plane in the Model Manager

    • Flip Direction. Flips the plane's clipping direction to show the opposite side of the model.

    • Delete. Removes the selected plane from the current session.

  6. Choose one of these options:

    1. To save the plane, click Save and Exit This shows the Save and Exit button in the right toolbar in the viewer in the Model Manager tool or press ENTER.

    2. To discard the plane, click Clear and Exit This image shows the Exit Mode icon in the Right Toolbar of the Viewer in the Model Manager tool. or press ESC.
